Radio Communication:
Ø3GPP release 15, Sub-6 GHz
Ø5G NR:n1/3/5/7/ 8/20/28/32/38/40/41/42/43/77/78/75/76/77/78
ØLTE FDD:B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71
ØLTETDD: B38/ 40/ 41/ 42/ 43
WiFi Standard:
ØWiFi6 802.11a/b/g/n/ac/ax
Ø2.4G MIMO 2x2/40MHz 574Mbps
Ø5G MIMO 2x2/160MHz 2400Mbps
Maximum Data Throughput:
Ø5G NSA: DL 4.67 Gbps; UL 836 Mbps
Ø5G SA: DL 4.67 Gbps; UL 1.25 Gbps
ØLTE: Max 1Gbps(DL)/200 Mbps(UL)

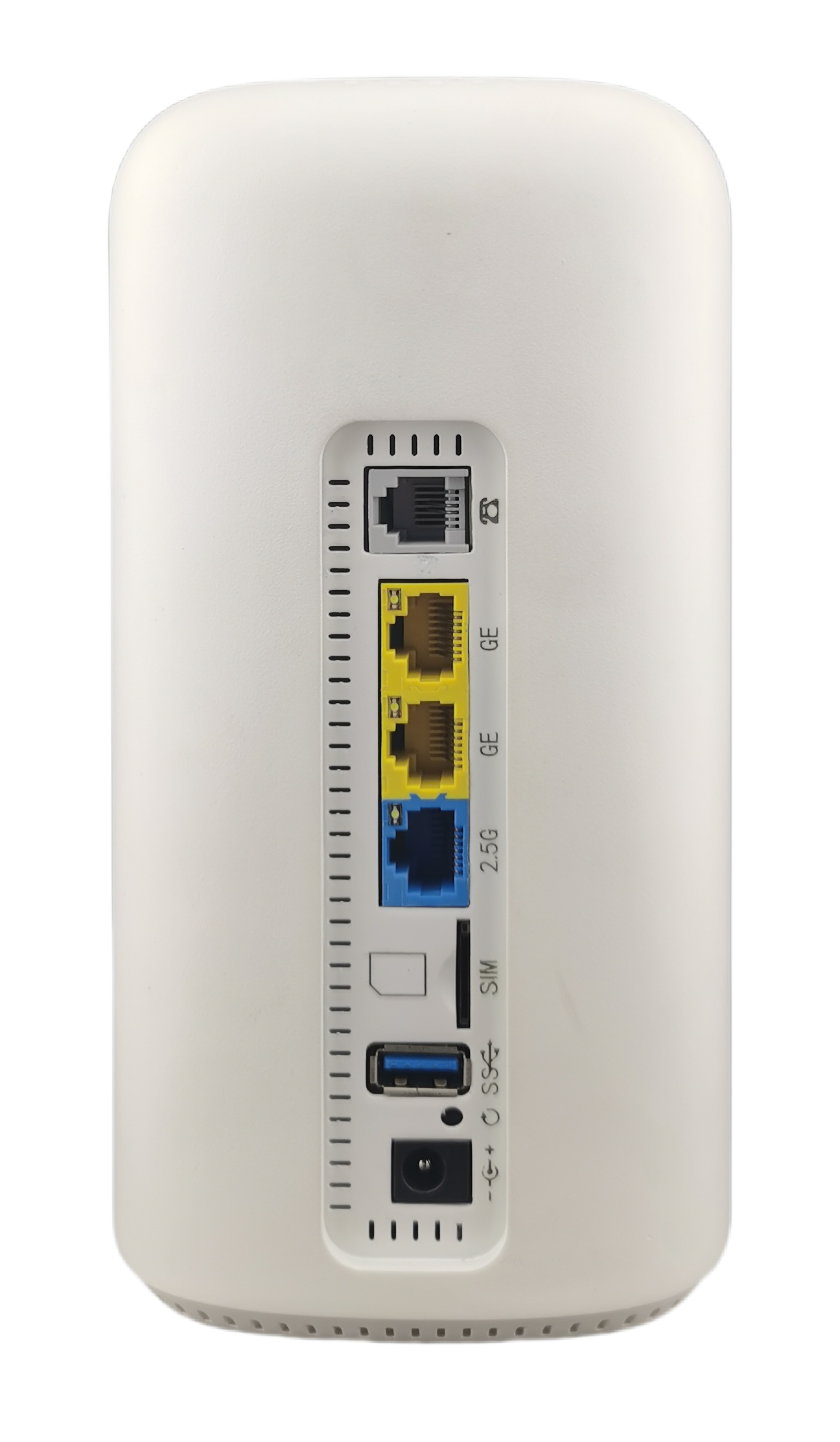

Interfaces:
ØWPS Button x1, USB x1 , RJ11 x1
Mechanical:
Ø Dimensions(mm): 100(W)x100(D)x190(H)
Ø Net Weight: 400g
